73A-451 Tektronix

VXI Wire-Wrap Module
Write review Stock #: 62084-3
Price Contact Us
Part Number 73A-451
In Stock 1
Location Illinois, USA
Ship Weight 6 lbs /ea
Condition Used and in Excellent Condition

Get Your Personalized Quote Today! Send us your information to receive a customized quote from our dedicated customer service team.

This Tektronix 73A-451 VXI Wire-Wrap Module is used and in excellent condition. This unit is missing the outer case. The Breadboard has been used moderately (end-user components installed on some of breadboard).

Option 02: Adds a front panel DD-50P connector. Also, a double-wide front panel with a cut out for the connector replaces the standard front panel.

This unit has a Male DD-50 connector and a Female DD-50 Connector.

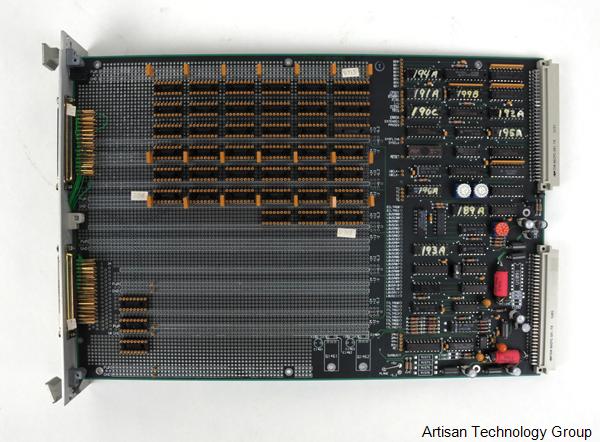

Here are photos of the circuit board:
Top of Breadboard
Bottom of Breadboard
Expedited Shipping Available

Expedited
Shipping Available

Expert Artisan Support

Expert
Artisan Support

1-Year Artisan Limited Warranty

1-year
Artisan Limited Warranty

Sell your equipment
Close ×
More Information
Features:
  • Two Logical Address Switches
  • Halt Switch
  • VMEbus Interrupt Level Select Switch
The Tektronix 73A-451 VXI Wire-Wrap Module is a printed circuit board assembly for use in a card cage conforming to the VXIbus Specification. The circuitry provided includes two logical address switches, a VMEbus interrupt level select switch, a halt switch, and provisions for user-installed voltage regulators and VXIbus CLK10 receivers. The voltage regulators allow development of unique supply voltages (such as ±15 V) not provided by the VXIbus standards. The 73A-451 is fully compatible with the VXIbus specifications for message-based protocol. AAs a VXIbus servant (slave) interface, it will handshake using Normal Transfer Mode.
The 73A-451 Tektronix VXI Wire-Wrap Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc

Tektronix 73A-451 VXI Wire-Wrap Module Manuals, Datasheets, Drivers, Links

Tektronix 73A-451 VXI Wire-Wrap Module Specs

General
ManufacturerTektronix / CDS
Model73A-451
ConditionUsed and in Excellent Condition
Product Family73A451, 73-A-451
