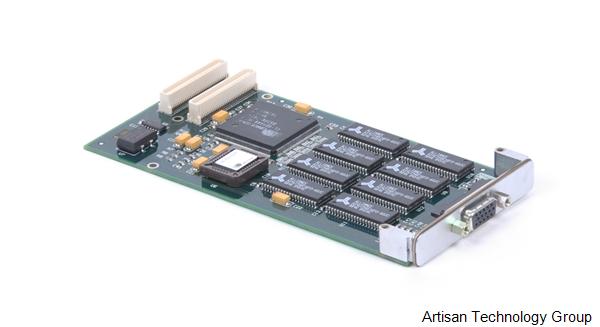

54003858-001 Telemetry East PMC Module

L-3 / Telemetry East 54003858-001 PMC Module Overview

Features:

• Miscellaneous PMC Boards
• Wide Range of Equipment

The Telemetry East 54003858-001 PMC Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).

PMC Module Price & Specs

L-3 / Telemetry East 54003858-001 PMC Module Description

Functions

This PMC module provides analog signal conditioning, digitization, and telemetry formatting. It accepts multiple channels of analog input, amplifies and filters signals, converts them to digital data via an ADC, and formats the data into a PCM telemetry stream. The module interfaces via a PMC connector, is typically integrated into a larger data acquisition system, and provides data output through a serial interface.

Platforms

Non-volatile programmable mezzanine card designed for data processing and control functions in telemetry systems. Compatible with VITA 32/PMC form factor specifications, this module integrates into VME, CompactPCI, or custom carrier boards. Features include onboard memory, programmable logic, and I/O interfaces supporting high-speed data acquisition and signal processing. Operates in ruggedized environments with extended temperature ranges. Commonly deployed in aerospace telemetry systems, defense applications, test instrumentation, and satellite communications infrastructure where modular, high-reliability computing is required.

Applications

This PMC (PCI Mezzanine Card) module functions as a telemetry data processing component within aerospace, defense, or test instrumentation systems. It processes telemetry signals in real-time for satellite communications, missile tracking, aircraft testing, or vehicle monitoring operations. The module interfaces with host PCIe systems to acquire, demodulate, decode, and process telemetry data streams. It supports standard telemetry protocols and can handle multiple channels simultaneously, enabling data acquisition, time synchronization, and signal processing for mission-critical applications requiring reliable high-speed data collection and analysis.

Accessories

Requires PMC (PCI Mezzanine Card) compatible carrier board or chassis with 32-bit or 64-bit PCI interface. Features front panel I/O connectors including DB-9 for serial ports, RJ-45 for Ethernet, and micro-D connectors for specialized interfaces. Utilizes standard PMC form factor (149mm x 74mm) with IEEE 1386 compliant mounting holes. Requires 3.3V or 5V power from host system through PMC connectors P11-P14 (64-pin) which provide PCI bus connectivity and user-defined I/O.

Interfaces

Connects to a host carrier card (e.g., VME, CompactPCI, PCI) via two 64-pin, high-density male PMC connectors (J1/P1, J2/P2) providing a 32-bit, 33/66 MHz PCI bus interface. Front panel I/O consists of one BNC female connector for PCM serial data input. Requires a compatible chassis or backplane with an available PMC site on a carrier card.

Specifications

PMC module for telemetry data acquisition, operates in VME64x backplane systems, interfaces with analog and digital inputs, features high-speed analog-to-digital conversion, supports programmable gain, and includes signal conditioning. Connects via front-panel I/O connectors or rear transition modules. Commonly used in aerospace telemetry systems for real-time signal processing and data acquisition, facilitates communication with control systems for efficient monitoring and analysis.
