More Information
Features:

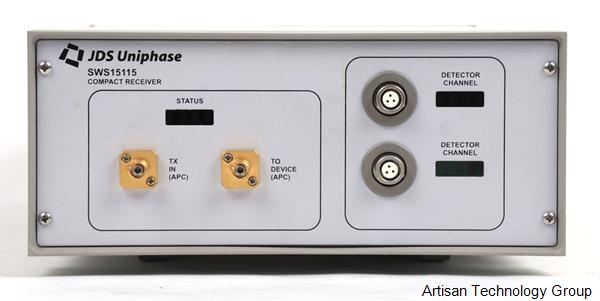

- Dual Channel Detector Module
- Status Indicator
- FC/APC Interface
The swept wavelength system is the solution for characterizing the wavelength dependence of passive optical components. The SWS is available in two wavelength ranges: the SWS15100 system scans the C-band from 1520-1570 nm and the SWS16100 offers extended L-band coverage from 1541-1630 nm. Both systems provide a very high wavelength accuracy of +/- 3 pm (+/- 0.003 nm) and a speed considerably faster than a broadband source/OSA or a tunable laser source/power meter system. The SWS can completely characterize the insertion loss of a 40-channel DWDM in less than 90 seconds. Where full coverage of the C and L-bands in a single trace is desired, the signals from the transmitters can be combined with an optional dual band selector switch located in the receiver.
SWS2000 Series Swept Wavelength System
With a ± 0.002 nm absolute wavelength accuracy over the whole 1420-1630 nm range, a high sweep speed of 20 nm/s, the SWS2000 provides the maximum economical performance available; the distributed architecture supports up to eight separate, independently controlled measurement stations per transmitter. The SWS2000 can be applied to the measurement of any passive fiberoptic device with up to 128 output channels at each measurement station. Such devices include couplers, splitters, isolators, WDM, DWDM, attenuators, switches, fiber Bragg gratings, waveguide devices, wavelength lockers, gain flatteners and interleavers.
The SWS15115 VIAVI Solutions Dual Channel Compact Receiver may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
VIAVI Solutions SWS15115 Dual Channel Compact Receiver Specs
| General |
| Manufacturer | VIAVI Solutions / JDSU |
| Model | SWS15115 |
| Condition | Used and in Excellent Condition |
| Product Family | SWS15100, SWS16100, SWS-15100, SWS16100, SWS 15100, SWS 16100, SWS15115-Z003, SWS15115Z003, SWS15115 Z003, SWS20015, SWS-20015, SWS 20015 |
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Artisan Scientific Corporation dba Artisan Technology Group is not affiliated with or a distributor for VIAVI Solutions. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Dual Channel Compact Receiver Price & Specs
