PMAC-PC OMRON

Programmable Multi-Axis Controller
Write review Stock #: 67682-59
Price Contact Us
Part Number PMAC-PC
In Stock Yes
Ship Weight 5 lbs /ea
Condition Used and in Excellent Condition

Get Your Personalized Quote Today! Send us your information to receive a customized quote from our dedicated customer service team.

Part Number: 602191-104

Configuration:
• Flex CPU Piggyback, Part Number: 603605-104
• Flex CPU Piggyback Series, Part Number: DSP563XX Flex CPU
• Option 1: Provides an Additional Four Channels of On-Board Axis Interface Circuitry
• Option 2: Dual Ported RAM with 50-Pin Connector
• Option 5A/5AF: 40 MHz DSP56002 CPU, 128K x 24 Zero Wait State SRAM, 512 KB Flash ROM
Expedited Shipping Available

Expedited
Shipping Available

Expert Artisan Support

Expert
Artisan Support

1-Year Artisan Limited Warranty

1-year
Artisan Limited Warranty

Sell your equipment
Close ×
More Information
Features:
  • Motorola DSP 56001, 56002, and 56003 Digital Signal Processors
  • Battery Backed Ram, Flash Memory, or Combination of Flash and Battery Backed
  • Up to 8 Servo Axes Per Board
  • 20, 40, 60 and 80 MHz Versions

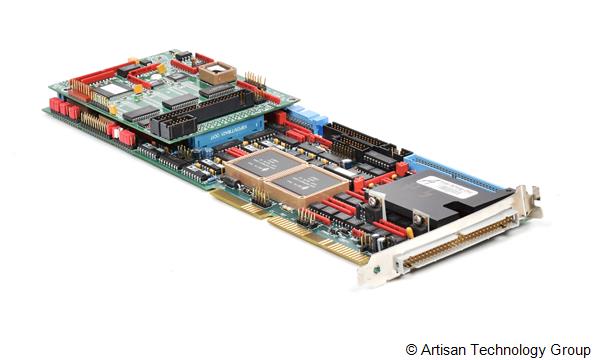

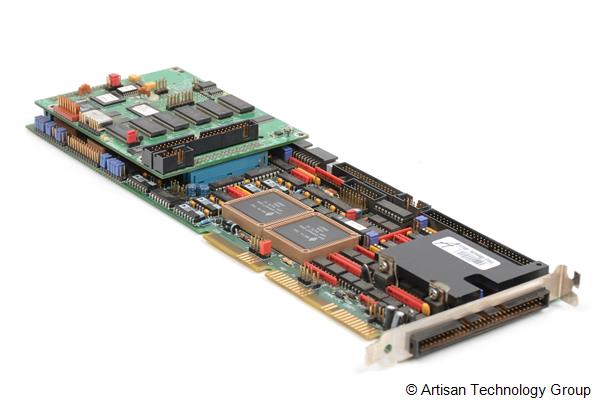

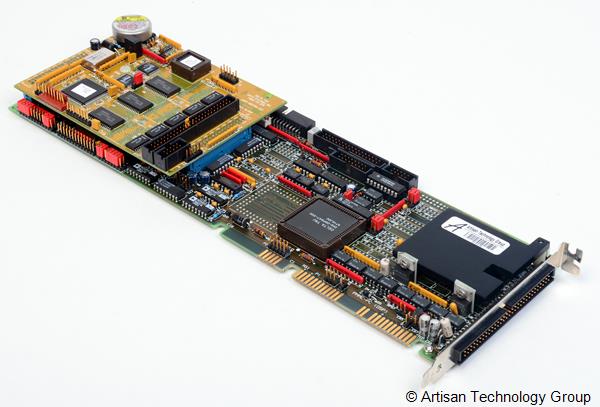

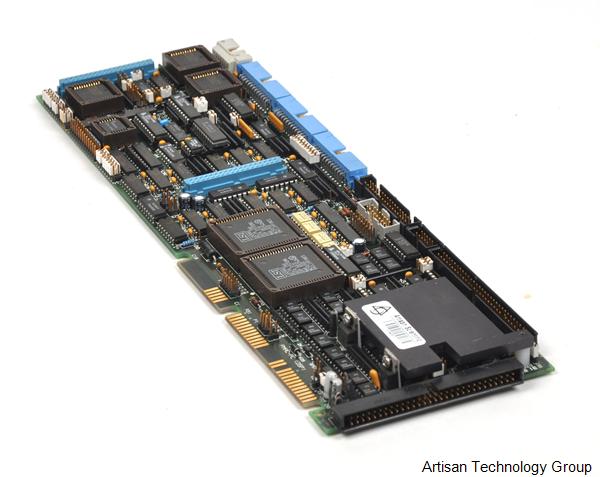

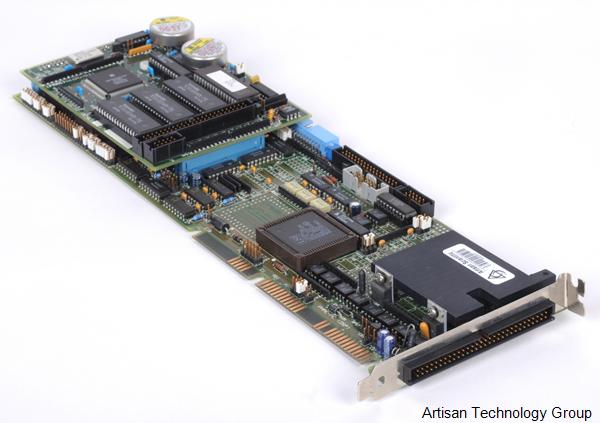

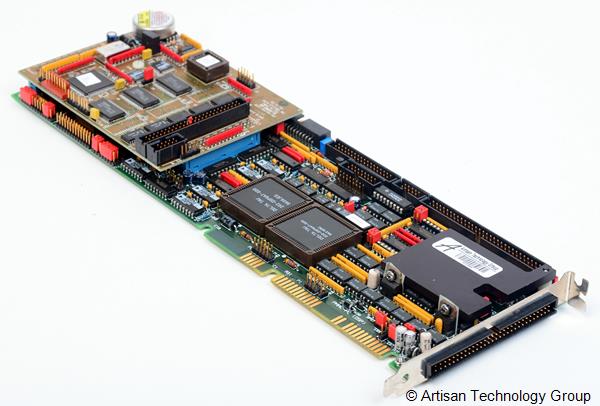

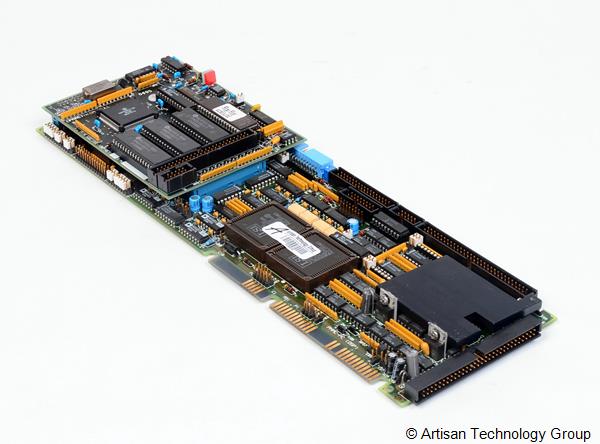

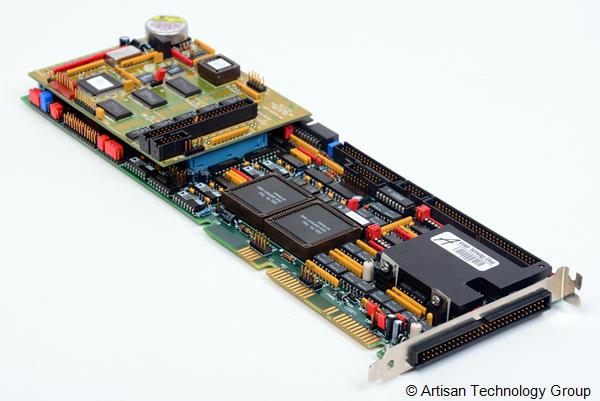

The PMAC PC is a full-sized ISA-bus expansion card, with a small piggyback board containing the CPU board. This piggyback board occupies part of the next slot, but 1/2-sized boards (such as the Option 2 Dual-Ported RAM board) are permitted in this next slot. While the PMAC PC is capable of ISA bus communications, with or without the optional dual-ported RAM, it does not need to be inserted into an ISA expansion slot. Communications can be done through an RS-232 or RS-422 serial port. Standalone operation is also possible.
The PMAC-PC OMRON Programmable Multi-Axis Controller may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc

OMRON PMAC-PC Programmable Multi-Axis Controller Specs

General
ManufacturerOMRON / Delta Tau
ModelPMAC-PC
ConditionUsed and in Excellent Condition
Product FamilyPMAC-PC, PMACPC, PMAC PC, 400-602204-10x, 400 602204 10x, 40060220410x
