Features:
- 32 and 64-Bit CompactPCI Bus Compatibility
- Test Points and Power LEDs
- PCI/PMC JTAG Port Connector

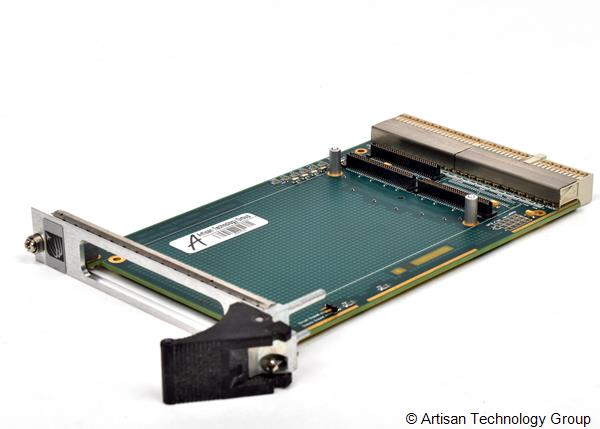

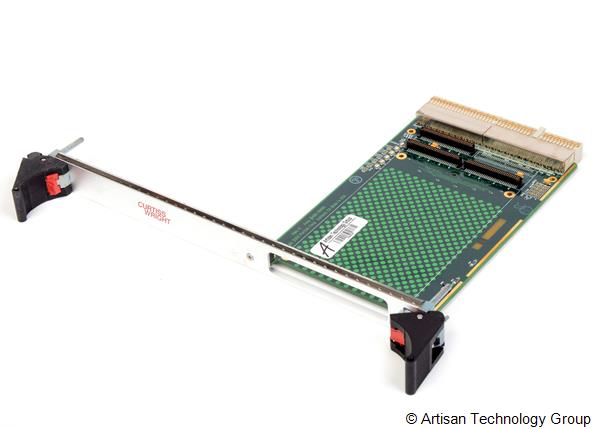

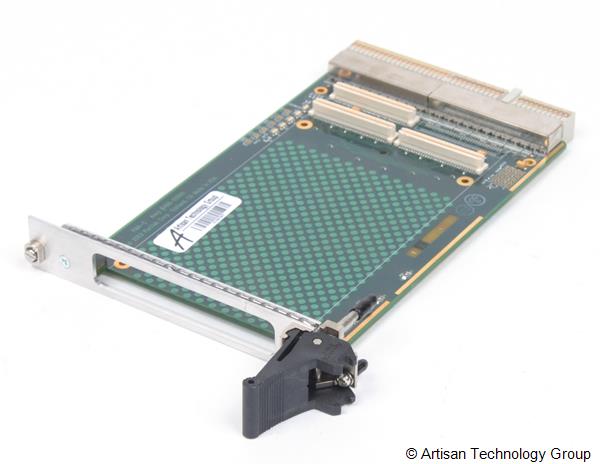

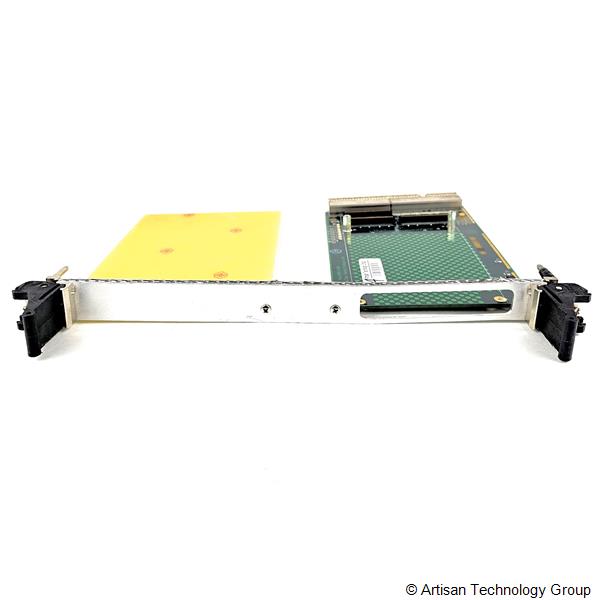

The Rastergraf PMA-C PMC to CompactPCI Adapter Board enables
any 32-bit or 64-bit PMC (PCI Mezzanine Card) module to be plugged
into a standard 3U or 6U CompactPCI slot. The PMA-C is designed to function as a transparent extension to the PCI
bus. As such, it is a passive adapter board and has no PCI-to-PCI bridge.
The carrier's PCI bus is connected directly to the PMC card's PCI bus.
Great care was taken to ensure signal integrity, impedance control, low
noise, and matched PCI trace length.
The PMA-C provides the full 64-bit interconnect between the
CompactPCI J1 and J2 and the PMC connector set. Jumpers can be
installed to enable 66 MHz mode, and to set PCI PRSNT and
PMC BUSMODE. Separate power planes are provided for +5V and ground. Bypass
capacitors are located at regular intervals across the board and at all
PMC and CompactPCI power pins, including +12V, -12V, +5V, +3.3V, and
VIO. Except for the bypass capacitors, the PMA-C does not provide any
sort of power conditioning or regulation.
To aid in debugging, the PMA-C has Test Point pins and LED indicators
for BUSMODE1, +12V, -12V, +5V, +3.3V and VIO. It also has a connector
for the JTAG port. PMC Index Pin holes are provided for both 3.3V and
5V PMC signaling pins so that the PMA-C can be configured for either
bus environment.
The PMA-C Peritek PMC to CompactPCI Adapter Board may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
Peritek PMA-C PMC to CompactPCI Adapter Board Specs
| General |
| Manufacturer | Curtiss-Wright / Peritek |
| Model | PMA-C |
| Condition | Parts Grade / As-Is |
| Product Family | PMA-C, PMAC, PMA C |
