Features:
- Frequency Generator and Distribution
- Time Codes Generator and Distribution
- Up to 3 External Redundant References
- Monitoring Capability of All Inputs and Outputs
- Network-Based Management
- Powerful SNMP Interface
The Microchip / True Time 56000 Modular Time and Frequency Distribution System is a versatile Data Rate
Clock (DRC) and Distribution System supporting an extensive variety of input references,
oscillators, output frequencies, input/output
interface styles, powerful network based
management tools, and complete power
supply plans. The modular architecture supports various clock rates and frequencies
required in today's sophisticated communications applications.
The 56000 backplane can accept 1, or 10 MHz;
IRIG B time code; and any TTL signal from
DC to 10Mbps. Multiple redundant external
frequency references can be applied to a hitless switch (passive combiner) located on each
frequency synthesizer circuit card. The hitless
switch provides a glitch-free transition from
one input source to another, ensuring reliable
and disturbance-free outputs, even in the
event of failure of one of the input sources.
The frequency reference inputs can be
replaced or enhanced by an on-board oscillator
circuit card or an on-board GPS timing
receiver. The oscillators are disciplined to
either the input frequency or GPS. Using the
oscillators in combination with external
reference inputs provides various levels of
redundancy. The oscillators also add holdover
capability so that uninterrupted operation is
maintained in the event of total failure of the
reference input(s).
Model 56000 outputs can include distributed
or generated clock signals, frequencies,
Network Time Protocol, and IRIG B time code.
N.1 clock rate generation from 1Hz to 25MPPS
in 1 PPS steps is available in addition to N.8
clock rate generation from 8 KPPS to 8.192
MPPS in 8KPPS steps. Also available is a
Telecommunications Interface
that provides a
variety of outputs and alarms common in
today's telecommunications applications. The
chassis is configured
with front and rear plug-in

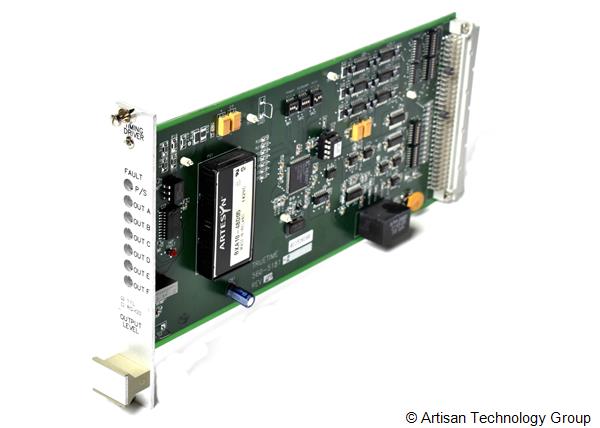

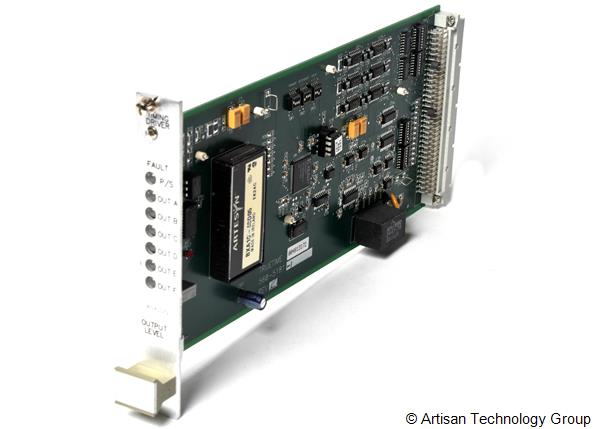

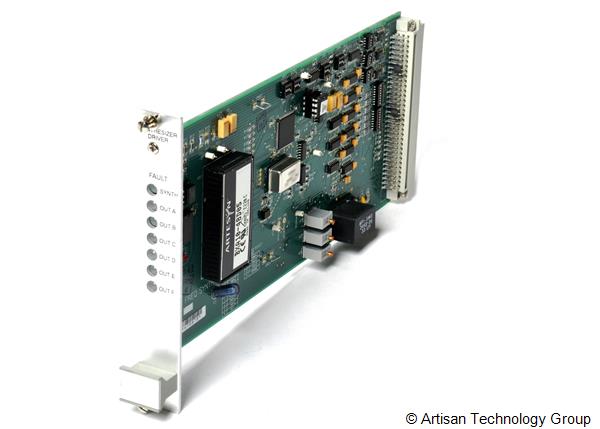

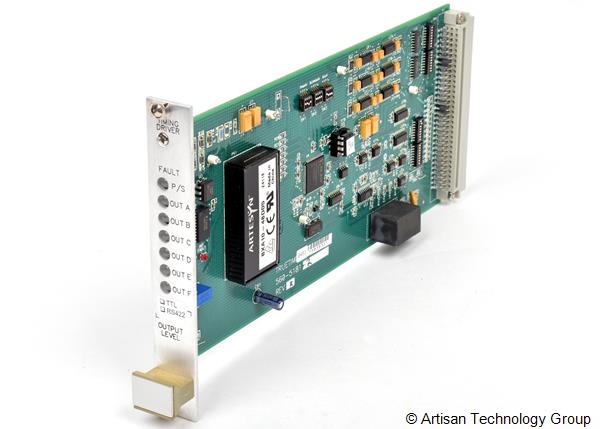

cards. The front
panel plug-in circuit cards
perform the modular rate
generation and
distribution functions and are hot swappable.
The rear panel interfaces are also implemented using plug-in cards
with a wide variety
of connector types
and styles. Of the 21 card
slots available, four are reserved for the
power supply(s), and the balance can hold
almost any combination of available circuit
cards. The basic
chassis includes power
supply, power input module, fault
monitoring CPU and a CPU interface
module. There are 16 available card slots
for the various synthesizer/ distributor
cards. Additional 56000 systems can be
daisychained using an optional on-board
fiber optics transmitter and receiver pair.
Large networks of time-frequency distribution can be constructed using the fiber
optics link.
The 560-5141-1 Microchip Output Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
Microchip 560-5141-1 Output Module Specs
| General |
| Manufacturer | Microchip / TrueTime |
| Model | 560-5141-1 |
| Condition | Used and in Excellent Condition |
| Product Family | 56000, 56OOO, 560-5155, 560 5155, 5605155 |
