Features:
- Single Slot, C-Size VXI Module
- 64-Ch High-Speed A/D Converter
- Scans 100k Samples / Second
- Eight SCP Module Slots

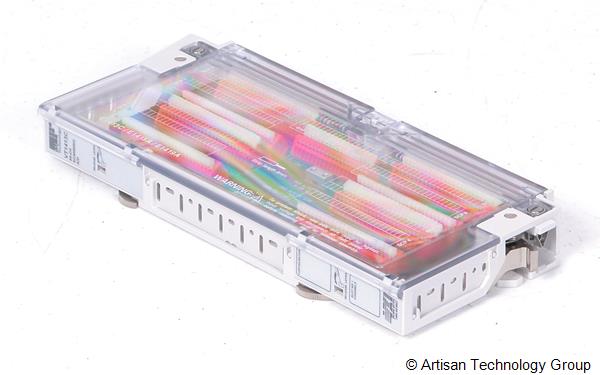

The VTI Instruments VT1413C 64-channel Scanning A/D converter is a C-size, single slot, register-based VXI module. It is designed for high-performance data acquisition and computer-aided test applications. The key requirements of these applications are high-speed scanning, 16-bit resolution, high accuracy (0.01#37; of reading), 4 mV to 16 V full scale input (60 V with VT1513A attenuator SCP), 64 kSample dual-ported FIFO buffer for fast data transfers, current value table for online monitoring, and automatic self-calibration.
The Option 011 VTI Instruments Screw Terminal Connector Block may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
Functions
Facilitates signal connectivity for measurement and control systems via screw terminals, providing secure, reliable electrical connections between data acquisition hardware and external signals. Enables easy field wiring with labeled terminals for various signal types including analog inputs/outputs, digital I/O, and sensor connections. Designed for industrial environments where robust termination is required for voltage, current, temperature, and strain measurements. Supports high channel count configurations with organized signal routing capabilities.
Platforms
Provides screw terminal connections for signal input/output. Enables connection of discrete wiring to VXI modules. Supports analog and digital signals. Designed for general-purpose signal termination and distribution within VXI chassis-based systems. Mates directly to VXI module front panel connectors. Used for connecting sensors, actuators, and other external devices.
Applications
The Option 011 provides direct wire connectivity through organized screw terminal blocks for VXI/VXIbus instrumentation modules. Designed for test system integration, it enables field wiring connections from sensors, transducers, and external circuits to VXI card cage slots. The terminal block supports multi-conductor cable breakout with clearly labeled connection points for signal routing. Common applications include automated test equipment (ATE) setups, data acquisition systems, industrial process monitoring, laboratory instrumentation racks, production test fixtures, and environmental chamber testing where reliable hardwired connections are required between VXI modules and external test points or devices under test.
Accessories
Screw terminal block for signal connections, compatible with Ametek VTI Instruments data acquisition systems. Features multiple terminal points for analog/digital I/O, barrier-style terminals accepting 12-24 AWG wire, detachable connector design. Provides strain relief and secure connections for test signals. Mounts directly to instrument front panel via D-sub or SCSI-style interface depending on instrument model. Includes mounting hardware and strain relief mechanisms.
Interfaces

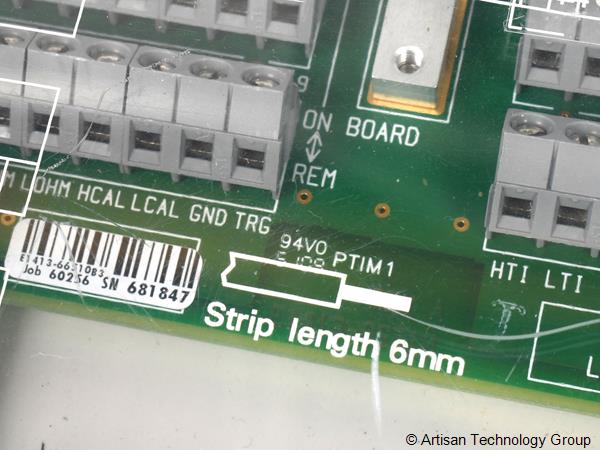

Connects to VTI SMIP/VMIP series modules (e.g., SM12xx) via an integrated male 78-pin high-density D-subminiature connector. Provides signal termination for field wiring through 78 individual screw terminals. Designed for direct mounting to the instrument's front panel connector.
Specifications
The screw terminal connector block provides direct wired signal connectivity. It is designed for VXIbus chassis, and offers screw terminals for easy connection of external wiring. It interfaces with signal conditioning modules and external devices via standard screw terminals. Common applications include data acquisition and signal routing in automated test systems.
