Features:
- Embedded Switch Technology Supports DLR and Linear Topologies
- Status Display Provides Information Without Software Connection
- Channel Isolation and Highly Integrated HART
- Single Channel SIL 3/PLe Rated
- Faster Safety Response Reaction Time
The Allen-Bradley Compact 5000 I/O System offers a wide variety
of standard and safety modules with dual gigabit (Gb)
embedded Ethernet ports for Device Level Ring (DLR)
and Linear topologies. This flexibility allows more
customization for applications demanding high performance
and speed. The system expands performance capabilities
within the Logix platform in a compact design, and
functions as local I/O modules in a CompactLogix 5380,
Compact GuardLogix
5380, or CompactLogix system.
Through the Compact 5000 EtherNet/IP adapter, it
is the ideal distributed I/O solution for CompactLogix
5380, Compact GuardLogix 5380, CompactLogix,
ControlLogix
5580, and GuardLogix 5580 controllers.
The I/O modules require a removable terminal block (RTB) to connect field-side wiring. RTBs are not included with the I/O modules.

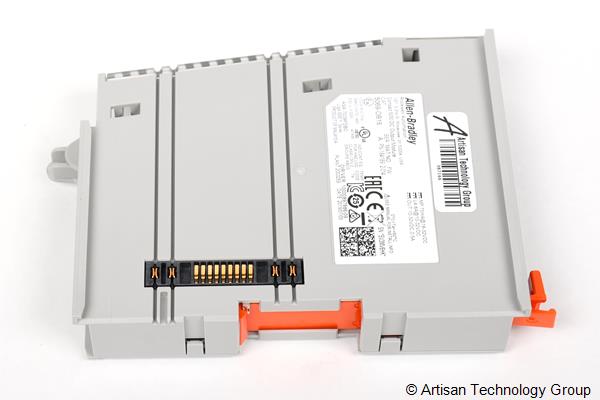

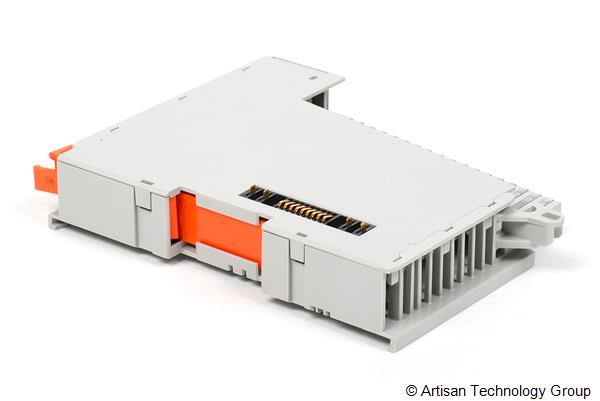

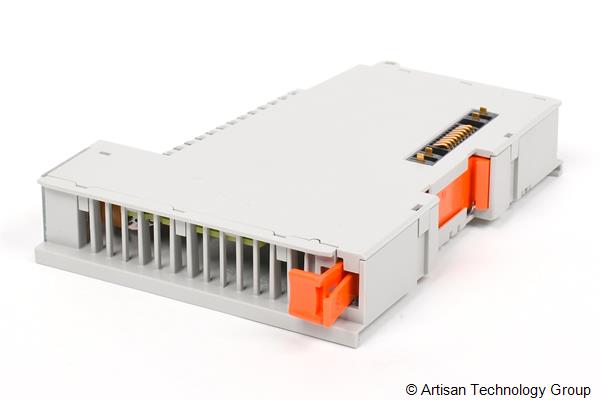

The 5069-OB16 Allen-Bradley Digital 16-Point Sourcing Output Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
Functions
Provides 16 discrete DC sourcing outputs for controlling external devices through solid-state switching. Operates within 10-32VDC range with 12/24VDC nominal voltage category. Interfaces with Compact 5000 I/O system via backplane connection, supporting distributed I/O architectures. Each channel sources current to connected loads when activated. Features electronic protection, diagnostic capabilities, and channel status indicators. Commonly controls solenoid valves, indicator lights, relays, and other DC-powered field devices in industrial automation applications. Supports hot-swappable installation and requires separate removable terminal block for field wiring connections.
This section includes content generated with the assistance of artificial intelligence (AI) tools. AI is used to increase efficiency and provide timely information. Please note that the content may not have been reviewed for accuracy or completeness. Use this information at your own discretion, and verify details independently as needed.
Allen-Bradley 5069-OB16 Digital 16-Point Sourcing Output Module Specs
| General |
| Manufacturer | Rockwell / Allen-Bradley |
| Model | 5069-OB16 |
| Condition | Used and in Excellent Condition |
| Product Family | Compact 5000, 5069-IB16, 5069-OB16, 5069-RTB18-SCREW |
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
