Features:
- Bridge Configurations: Full, Half, Or Quarter Bridge
- Bridge Resistance Range: 120 Ohm - 1000 Ohm
- Maximum Sample Rate Range: 25.6 kS/s - 102.4 kS/s
- Analog Input Voltage Range: -25 MV/V to 25 mV/V, -100 mV/V to 100 mV/V
Measures bridge-based sensors, such as strain gages and load cells, in PXI systems.
PXI Strain/Bridge Input Modules feature up to eight channels that support quarter-, half-, or full-bridge sensors at speeds up to 102.4 kS/s. The modules provide increased accuracy, high data throughput, and a range of synchronization features. Optional features include remote sensing, internal bridge completion, and shunt calibration options per channel. PXI Strain/Bridge Input Modules are ideal for dynamic strain, load and pressure measurements, and test cell installations requiring accuracy and flexibility.
The NI PXIe-4331 PXI Strain/Bridge Input Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
Functions
Acquires analog signals from strain gauges, load cells, pressure transducers, and Wheatstone bridge sensors through 8 differential input channels. Provides programmable bridge excitation voltage, supports quarter-bridge, half-bridge, and full-bridge configurations with selectable completion resistors. Features built-in signal conditioning, anti-aliasing filters, and simultaneous sampling across all channels. Interfaces with PXI Express backplane for high-speed data transfer and synchronization with other measurement modules in automated test systems.
This section includes content generated with the assistance of artificial intelligence (AI) tools. AI is used to increase efficiency and provide timely information. Please note that the content may not have been reviewed for accuracy or completeness. Use this information at your own discretion, and verify details independently as needed.

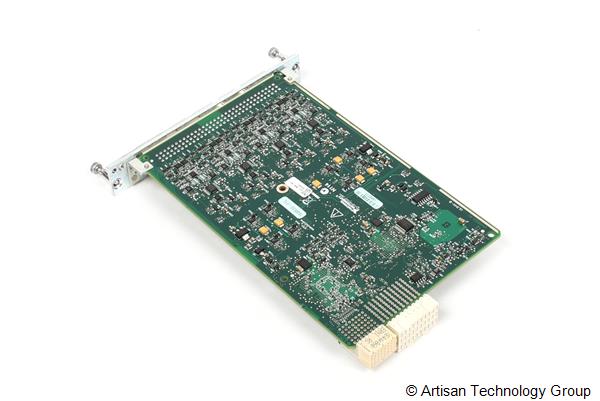

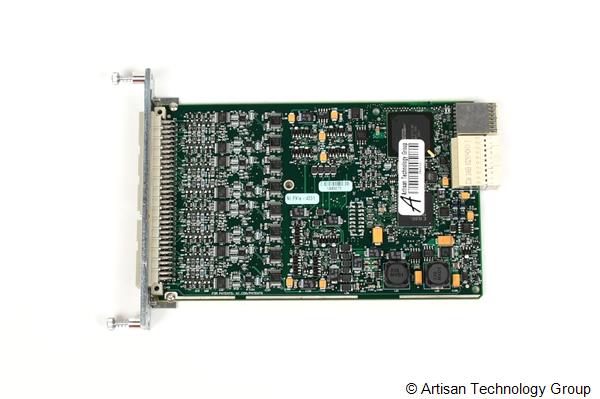

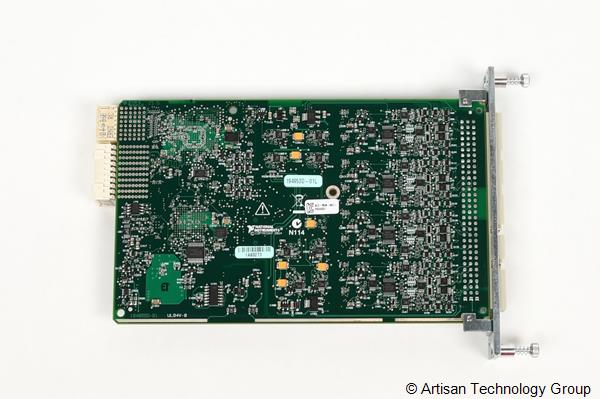

NI PXIe-4331 PXI Strain/Bridge Input Module Specs
| General |
| Manufacturer | NI |
| Model | PXIe-4331 |
| Condition | Used and in Excellent Condition |
| Product Family | PXI-4330, PXI-4331, PXI4330, PXI4331, PXI 4330, PXI 4331, |
