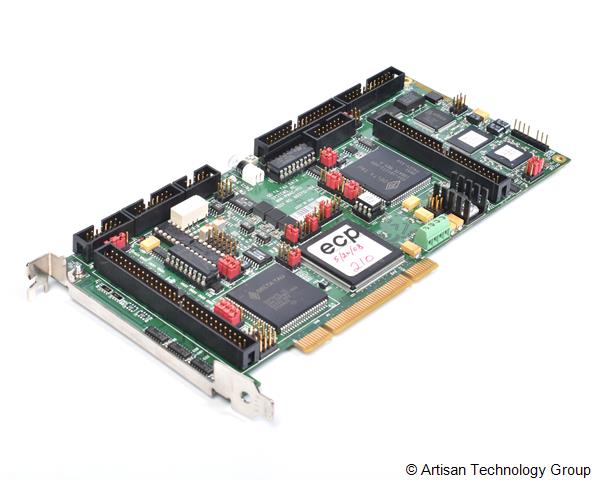

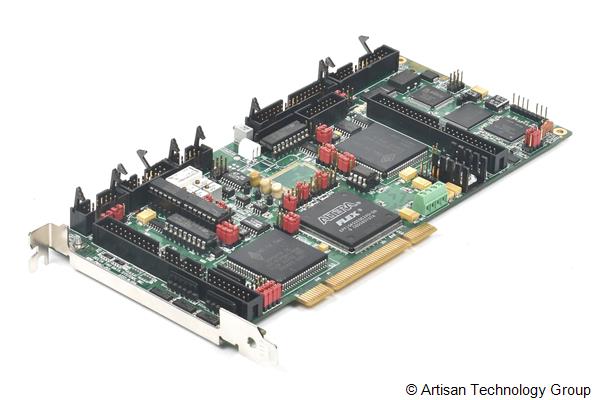

PMAC Mini PCI Delta Tau

Programmable Multi-Axis Controller
Write review Stock #: 83930-1
Price $4,750.00
Part Number PMAC Mini PCI
In Stock 1
Location Illinois, USA
Ship Weight 3 lbs /ea
Condition Used and in Excellent Condition
Expedited Shipping Available

Expedited
Shipping Available

Expert Artisan Support

Expert
Artisan Support

1-Year Artisan Limited Warranty

1-year
Artisan Limited Warranty

This unit was originally ordered without the faceplate.

Configuration:
• Option 5AF: 40 MHz DSP563xx CPU (80 MHz 56002 equivalent). (Default Configuration)
• Option 10: Firmware Version PMAC1 V1.17C

Part Numbers: 603712-101, 603712-551, 4-3712xx-xx0x-00xxxx
Sell your equipment

Submit Your Offer, We’re Here to Assist! If we find your offer reasonable our dedicated customer service team will get back to you.

Close ×
More Information
Features:
  • 40 MHz DSP563xx CPU (Option 5AF)
  • 128k x 24 Internal Zero-Wait-State SRAM
  • 512k x 8 Flash Memory for Firmware and User Backup
  • RS-232 Serial Interface, 33 MHz PCI Bus Interface
  • Interface to 4 External 16-Bit Serial ADCs
  • Display, Muxed I/O, Direct I/O Interface Ports
The Delta Tau PMAC Mini PCI Programmable Multi-Axis Controller is a compact, 2-axis version of the PMAC(1) family (unless accessories are added to expand the number of axes). It can be used in a PC’s PCI slot as a half-sized board (230 mm, 9” long) or it can be used standalone using serial communications for setup and/or application control. Programs for the PMAC Mini PCI (both motion and PLC programs) are 100% compatible with other versions of Non-Turbo PMAC. The PC can communicate to PMAC through the PCI slot or through a RS-232 or RS-422 serial port if standalone operation (i.e. without a PC) is desired.
The PMAC Mini PCI Delta Tau Programmable Multi-Axis Controller may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc

Delta Tau PMAC Mini PCI Programmable Multi-Axis Controller Manuals, Datasheets, Drivers, Links

Delta Tau PMAC Mini PCI Programmable Multi-Axis Controller Specs

General
ManufacturerOMRON / Delta Tau
ModelPMAC Mini PCI
ConditionUsed and in Excellent Condition
Product FamilyPMAC Mini PCI, Mini-PMAC-PCI, Mini PMAC PCI, MiniPMACPCI

We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.

With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!


Request Form

Item to Inspect: 83930-1 - Delta Tau PMAC Mini PCI Programmable Multi-Axis Controller

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Artisan Scientific Corporation dba Artisan Technology Group is not affiliated with or a distributor for Delta Tau. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
