Features:
- High-Performance Host Bus Adapters (HBA)
- Ideal for Data-Intensive Applications
- Provides Support for SCSI Fibre Channel Protocol (FCP) and Internet Protocol (IP)

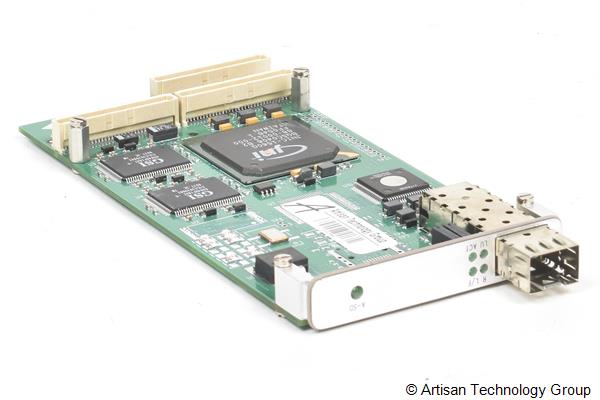

The Systran FibreXpress FX200 Dual-Channel PCI and PMC Series Cards are high-performance host bus adapters (HBA) that are
ideal for data-intensive applications. This unique design provides support for SCSI Fibre
Channel Protocol (FCP) and Internet Protocol (IP), eliminating the need to deal directly
with the FC interface. In addition, the FX200 DC cards feature two separate high-performance RISC I/O engines to minimize host CPU overhead. The superior
communication and interconnect capabilities of the FC standard are maximized by
Systran's FX200 DC cards.
The FX200 DC cards incorporate the functionality of two independent FC 2.125 Gbps
channels on a single HBA. This compact design minimizes the number of required host
computer slots, while providing the performance of two separate HBAs. As a result, an
efficient Fibre Channel (FC) system is established using only a minimal number of Single
Board Computers (SBC) or PCI slots.
Each channel on the FX200 DC card is capable of sustaining a 200 MBps transfer rate,
and up to 400 MBps transfer rate in full duplex, thus achieving 800 MBps in combined
throughput. In addition, both channels on the FX200 card support 1.0625 Gbps and the
2.125 Gbps rates, automatically detecting and switching to the appropriate rate using
Auto-Speed Negotiation. This feature enables the FX200 cards to interoperate with
existing FC devices at 1.0625 Gbps, and provides seamless transition to higher
performance 2.125 Gbps devices.
The physical media interface of the FX200 DC products is the Small Form Factor (SFF)
transceiver. The SFF transceivers are soldered to the card and are not removable. This
secure connection is utilized for rugged operating environments.
The FibreXpress FX200 Systran Fiber Channel PMC Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
Systran FibreXpress FX200 Fiber Channel PMC Module Specs
| General |
| Manufacturer | Curtiss-Wright / Systran |
| Model | FibreXpress FX200 |
| Condition | Used and in Excellent Condition |
| Product Family | FX200, fx200, FX 200, fx 200, FX-200, fx-200, FibreXpress FX200, fibrexpress fx200, FHJ4-PM5MW000-00, FHJ4-PM5SW000-00, FHJ4-PM5HS000-00, FHJ4-PM5MW000-R1, FHJ4-PM5SW000-R1, FHJ4-PM5HS000-R1, FHJ4-PM5MW000-R2, FHJ4-PM5SW000-R2, FHJ4-PM5HS000-R2, FHJ3-PC5MW000-00 |
