1420 Pentek DC-20 MHz Direct Digital Frequency
Write a reviewStock # 59329-1
Request a Quote
Get a formal quote for this item, including volume pricing and PO terms.
Item details
| Part Number | 1420 |
|---|---|
| In Stock | 4 |
| Available | Today |
| Location | Champaign, IL USAships worldwide |
| Stock # | 59329-1 |
| Ship Weight | 3 lbs /ea |
| Condition | Used and in Excellent Condition |
| Inspection | Before every shipment |
| Warranty | 1-Year Warranty with 30-Day Return Guarantee |
Description
Installed Options: 004 (+/- 3ppm internal reference).

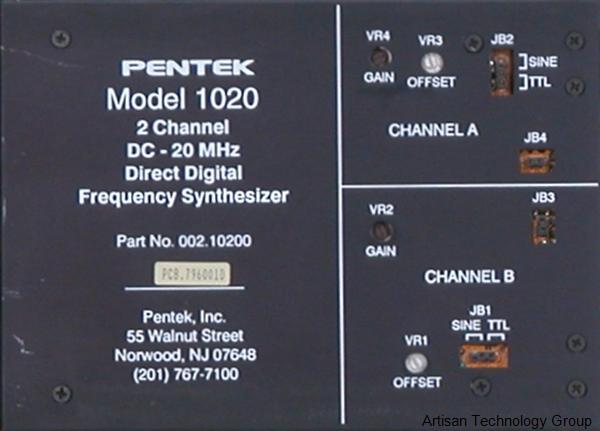

This unit features adjustable Gain, Offset and Output controls which can be seen here.
This unit features adjustable Gain, Offset and Output controls which can be seen here.
Diasholaun D.Artisan product specialist
Click anywhere or press Esc to close
Brands:
Did you know?
Sell your EquipmentThat idle equipment in your warehouse could be cash.
Government & Enterprise Buyers: volume pricing, POs and government purchasing.
Government SalesWrite a Review
Share your experience with this item to help other buyers.
Make an Offer
Submit Your Offer, We’re Here to Assist! If we find your offer reasonable our dedicated customer service team will get back to you.
Request More Information
Have a question about this item? Send us a message and a specialist will follow up.
Thank You!
We have received your InstraView Request and will be contacting you shortly.
More Information
Pentek 1420 DC-20 MHz Direct Digital Frequency Overview
Features:
- Four Channels
- Direct Digital Synthesis
- DC to 20 MHz Frequency Range
- 0.012 Hz Resolution
- Sine Wave and TTL Outputs
- Phase-Continuous Frequency Programming
The Pentek Model 1420 Direct Digital Synthesizer is a complete instrument packaged on a VMEbus card containing either one or two detachable synthesizer modules. Each module contains two independently programmable synthesizers, providing a total of four output channels for the card. The output frequency range of each synthesizer is DC to 20 MHz.
Each of the four outputs can be configured either as a sine wave or TTL-compatible pulse signal available on a BNC connector mounted on the VME front panel. A 10 MHz crystal oscillator provides the frequency reference from which all accuracy and stability specifications are determined. An external 10 MHz reference may be provided to lock the Model 1420 to a system reference.
The Model 1420 may be operated in fixed frequency or Frequency Shift Keying modes (FSK). Several phase modulation modes are also available such as Binary Phase Shift Keying (BPSK) and Multiple Shift Keying (MSK).
The ability to adjust phase between multiple TTL signals is a feature that makes the synthesizer useful in many digital test systems.
Each of the four outputs can be configured either as a sine wave or TTL-compatible pulse signal available on a BNC connector mounted on the VME front panel. A 10 MHz crystal oscillator provides the frequency reference from which all accuracy and stability specifications are determined. An external 10 MHz reference may be provided to lock the Model 1420 to a system reference.
The Model 1420 may be operated in fixed frequency or Frequency Shift Keying modes (FSK). Several phase modulation modes are also available such as Binary Phase Shift Keying (BPSK) and Multiple Shift Keying (MSK).
The ability to adjust phase between multiple TTL signals is a feature that makes the synthesizer useful in many digital test systems.
The Pentek 1420 DC-20 MHz Direct Digital Frequency may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
