More Information
Features:
- 50 or 100 MHz maximum Clock Rate
- 32 Channels with Per-Channel Direction Control
- NI Synchronization and Memory Core (SMC) Device
- 1, 8, or 64 Mb/Channel Onboard Memory

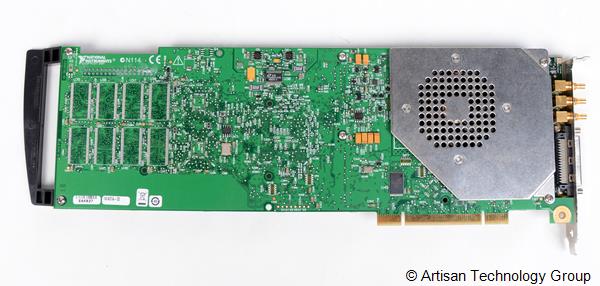

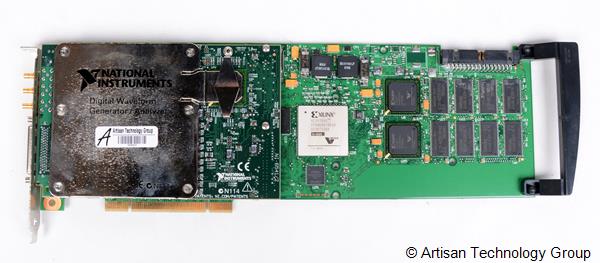

PCI-6541
The National Instruments PCI-6541 is a 50 MHz digital waveform generator/analyzer for interfacing to digital electronics. This board features 32 channels with per-channel direction control and deep onboard memory with triggering and pattern sequencing. Through the NI-HSDIO driver, you can configure the board for 5.0, 3.3, 2.5, or 1.8 V logic. You also can use the NI PCI-6541 with the NI Digital Waveform Editor, an interactive software tool for creating and editing digital waveforms. With the SMC architecture, you can create mixed-signal test systems with digitizers, arbitrary waveform generators, and other digital waveform generator/analyzers, or you can synchronize multiple digital devices to build low-skew multichannel systems for interfacing to high-pin-count digital ICs and electronics.
PCI-6542
The National Instruments PCI-6542 is a 100 MHz digital waveform generator/analyzer for interfacing to digital electronics. This board features 32 channels with per-channel direction control and deep onboard memory with triggering and pattern sequencing. Through the NI-HSDIO driver, you can configure the board for 5.0, 3.3, 2.5, or 1.8 V logic. You also can use the NI PCI-6542 with the NI Digital Waveform Editor, an interactive software tool for creating and editing digital waveforms. With SMC, you can create mixed-signal test systems with digitizers, arbitrary waveform generators, and other digital waveform generator/analyzers, or you can synchronize multiple digital devices to build low-skew multichannel systems for interfacing to high-pin-count digital ICs and electronics.
The NI PCI-6541 Digital Waveform Generator / Analyzer may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
NI PCI-6541 Digital Waveform Generator / Analyzer Specs
| General |
| Manufacturer | NI |
| Model | PCI-6541 |
| Condition | Used and in Excellent Condition |
| Product Family | 778988-01, 778988-02, 778988-03, 778989-01, 778989-02, 778989-03, PCI-6541, PCI 6541, PCI6541, PCI-6542, PCI6542, PCI 6542, 778952, 778953 |
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
