Features:
- (160) Digital Lines Configurable as Inputs, Outputs, Counters, or Custom Logic at Rates up to 40 MHz
- Virtex-II 1M Gate FPGA Programmable with the LabVIEW FPGA Module
- User-Defined Triggering, Timing, and Onboard Decision Making with 25 ns Resolution

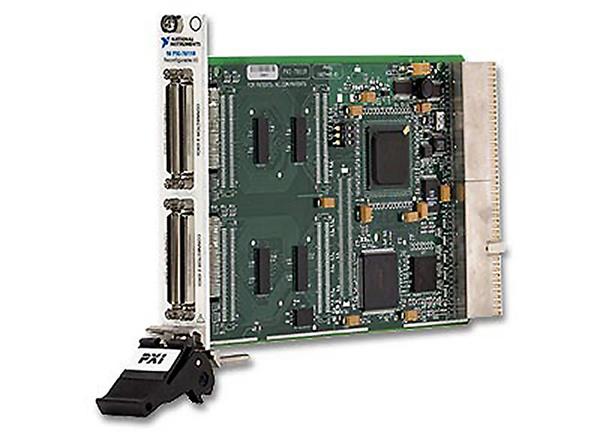

The National Instruments PXI-7811R R Series Digital RIO with Virtex-II 1M Gate FPGA Module features a user-programmable FPGA chip for onboard processing and flexible I/O operation. You configure all functionality using NI LabVIEW graphical block diagrams and the LabVIEW FPGA Module. Your block diagram executes in the hardware, giving you direct, immediate control over all I/O signals to deliver high-performance capabilities such as the following:
• Complete control over the synchronization and timing of all signals and operations
• Custom onboard decision making that executes with hardware-timed speed and reliability
• 160 digital lines individually configurable as inputs, outputs, counter/timers, PWM, flexible encoder inputs, or specialized communication protocols.
With R Series digital RIO devices and LabVIEW FPGA, you can configure user-defined hardware for a wide variety of applications, such as custom digital DAQ, high-speed waveform generation, sensor simulation, hardware-in-the-loop (HIL) test, custom digital communications protocols, bit error rate testing, and other applications that require precise timing and control.
The NI PXI-7811 / PXI-7811R Digital RIO with Virtex-II 1M Gate FPGA Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
NI PXI-7811 / PXI-7811R Digital RIO with Virtex-II 1M Gate FPGA Module Specs
| General |
| Manufacturer | NI |
| Model | PXI-7811 / PXI-7811R |
| Condition | Used and in Excellent Condition |
| Product Family | PXI-7811R, PXI7811R, PXI 7811R |
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Artisan Scientific Corporation dba Artisan Technology Group is not affiliated with or a distributor for NI. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
