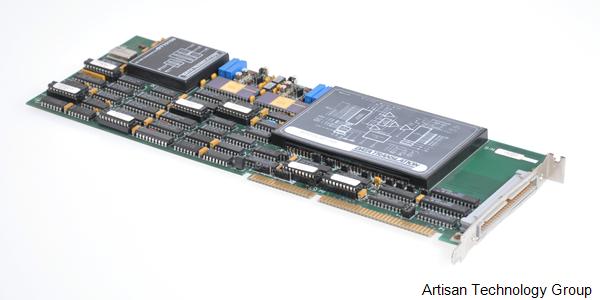

DT2821 Measurement Computing

Data Acquisition Board
Write review Stock #: 63836-3
Price Contact Us
Part Number DT2821
In Stock 4
Location Illinois, USA
Ship Weight 3 lbs /ea
Condition Used and in Excellent Condition

Get Your Personalized Quote Today! Send us your information to receive a customized quote from our dedicated customer service team.

Configuration:

• Resolution (bits): 12 (0.024% FSR)
• Throughput (kHz): 50/DAC
• Input Channels: 16SE / 8DI
• Gain: 1,2,4,8
• Ranges (V): 0-1.25, 2.5, 5, 10 (±1.25, 2.5, 5, 10)
• System Error (% of FSR): ± 0.03, G=1 or ± 0.05, G=8
• Conversion Time (µs): 10
• CMRR (dB at 60 Hz): 80
• S/H Aperture Uncertainty (ns): 10
• Max. Input Volt. Protection (On/Off): ±35/±20

Part Number: 05206, 05211
Expedited Shipping Available

Expedited
Shipping Available

Expert Artisan Support

Expert
Artisan Support

1-Year Artisan Limited Warranty

1-year
Artisan Limited Warranty

Sell your equipment
Close ×
More Information
Features:
  • Dual-DMA Design
  • Analog Input Circuitry Housed in a Cold-Rolled Steel Module
  • Analog Input Circuitry Powered by Onboard DC/DC Converter
  • Two De-Glitched, Independent Analog Outputs are Provided
  • Sample Input Channels in Any Sequence, at Any Gain, at Full Throughput
The DT2821 Series Data Acquisition Boards are a family of high-speed, dual-channel DMA data acquisition boards for PC AT compatibles. By using two DMA channels, these boards provide continuous performance (gap-free) data transfers at the full throughput capability of the board-up to 250 kS/s. Each board provides two high-speed de-glitched analog outputs, eight digital inputs, and eight digital outputs. The channel gain list allows you to sample channels in non-sequential order or with different gains. Comprehensive software support allows the DT2821 Series to be programmed using a variety of languages and application packages.
The DT2821 Measurement Computing Data Acquisition Board may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc

Measurement Computing DT2821 Data Acquisition Board Specs

General
ManufacturerMeasurement Computing / Data Translation
ModelDT2821
ConditionUsed and in Excellent Condition
Product FamilyDT2821

We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.

With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!


Request Form

Item to Inspect: 63836-3 - Measurement Computing DT2821 Data Acquisition Board

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Artisan Scientific Corporation dba Artisan Technology Group is not affiliated with or a distributor for Measurement Computing. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
