Features:
- Evacuates Vacuum Chambers Down to High Vacuum and Ultra-High Vacuum Pressure Ranges
- Suitable for Pumping Air and Clean Gases
- Standard TMP Rotor Type [TURBOVAC T ... i(X)]
- Wide-Range TMPs Equipped with an Additional Holweck Stage [TURBOVAC ... i(X)]
- Built-In Frequency Converter as the Electronic Drive [TURBOVAC i(X)]
The Inficon TURBOVAC 90 iX / 250 iX / (T) 350 iX / (T) 450iX Series Turbomolecular Pumps with Integrated Frequency Converter and Control Unit are turbomolecular
pumps designed to evacuate vacuum chambers down to pressure levels in the high vacuum and ultra-high vacuum range. They are suitable for pumping air and clean gases. A forevacuum pump and a power supply are required for their operation.
The pump models TURBOVAC T ... i(X) are of the standard TMP rotor type; the TURBOVAC ... i(X) models are wide-range TMPs equipped with an additional Holweck stage.
With the built-in frequency converter as the electronic drive the TURBOVAC i(X) forms one single unit. The electonic drive governs the pump's speed and
serves as a monitor for all functions of the pump. Moreover, the TURBOVAC iX is equipped with an integrated vacuum system controller for connection
and operation of various accessory components.
At the high vacuum side the bearing is of a non-wearing permanent magnetic bearing type, at the forevacuum side a lifetime lubricated oil-free ceramic ball
bearing is used.

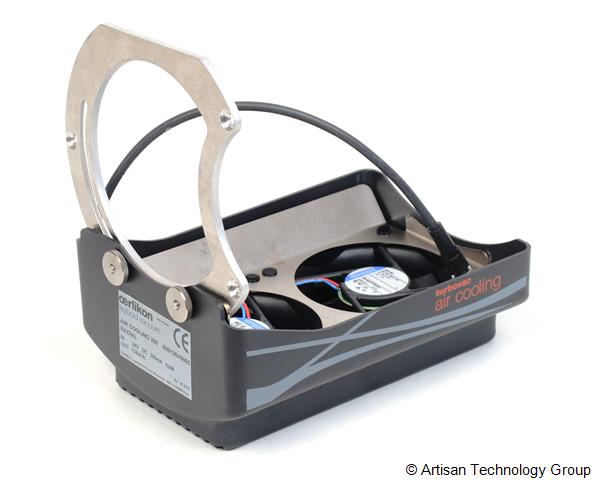

Water cooling or an air cooling fan is an option at manufacturing.
The intake flange should be fitted with a wire mesh inlet screen to protect the
pump against mechanical damage caused by foreign objects.
The pumps are equipped with a venting and a purge gas facility. The connections are blanked off by default with G1/8" closure screws.
Venting and purge gas valves, or a venting screw, or a pressure regulator can
be connected directly to the pump.
The TURBOVAC 450iX Inficon / RS 485 / DN 160 ISO-K Turbomolecular Pump Bundle may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
