U11R-4-A/DM4001-80-F1/1488 Aerotech

Unidex 11 4-Axis Motion Controller

Write your review Stock #: 63875-20

Price	Contact Us
Part Number	U11R-4-A/DM4001-80-F1/1488
In Stock	1
Available	Today
Location	Illinois, USA
Ship Weight	10 lbs /ea
Condition	Used and in Excellent Condition
Functionality	Tested
Warranty	1-Year Warranty with 30-Day Return Guarantee

Get Your Personalized Quote Today! Send us your information to receive a customized quote from our dedicated customer service team.

	✗

Input Voltage: 115 VAC

Part Number: U11R-4-A/DM4001-80-F1/1488

DM4001 Stepping Motor Drive Module Installed:
The DM4001 is designed to accurately control a standard unipolar stepping motor by utilizing a unique sin/cos translator control.

Connections:

• UJ1: Twist-Lock Connector
• VJ1: Twist-Lock Connector
• XJ1: Twist-Lock Connector
• YJ1: Twist-Lock Connector
• J13: X ENC/LMT (Female DB-25)
• J14: Y ENC/LMT (Female DB-25)
• J10: X AUX. CONTROL (Male DA-15)
• J11: Y AUX. CONTROL (Male DA-15)
• J19: U ENC/LMT (Female DB-25)
• J20: V ENC/LMT (Female DB-25)
• J17: U AUX. CONTROL (Male DA-15)
• J18: V AUX. CONTROL (Male DA-15)
• J5: INPUT/OUTPUT (Female DA-15)
• J3: JOYSTICK (Female DA-15)
• J2: RS-232C
• J6: OPTO-INTERFACE

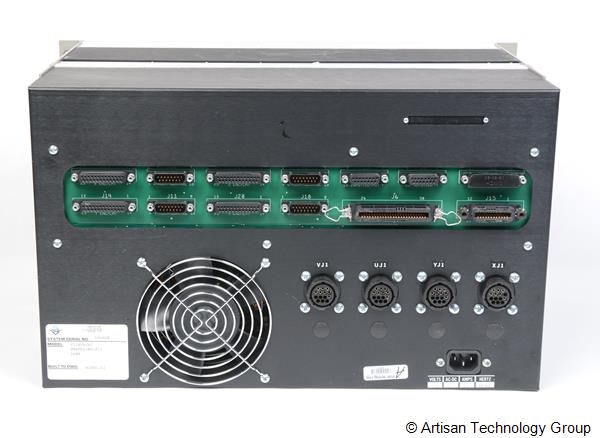

View Photo of the connections on the back of this unit

Brands:
Aerotech

Expedited
Shipping Available

Expert
Artisan Support

1-year
Artisan Limited Warranty

Sell your equipment

Close ×

More Information

Features:

Two, Three and Four-Axis Controller
Controls Open Loop Stepping Drive
3U Desktop Unit

Aerotech Unidex 11 Multi-Axis Motion Controller is available in four packages: a 3U (6 inch high) one to two axis desktop unit (model U11M), a 6U (12 inch high) one to four axis desktop cabinet (model U11S), a 6U high 19 inch rack mount chassis (model U11R), and a high power 19 inch rack mount chassis for heavy duty applications (model U11H). The latter three configurations are capable of one through four axes of motion control, and are capable of both closed loop DC brush servo and open loop stepping drive control. Any combination of closed loop DC drives or open loop stepping drives can be accommodated. That is, drives can be "all" DC or "all" stepping, or any combination of the two. (The 3U high two-axis package is only capable of open loop stepping drive control, using the D or DM Series stepping drives.)

The U11R-4-A/DM4001-80-F1/1488 Aerotech Unidex 11 4-Axis Motion Controller may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).

no_ai_desc

Aerotech U11R-4-A/DM4001-80-F1/1488 Unidex 11 4-Axis Motion Controller Manuals, Datasheets, Drivers, Links

Aerotech U11R-4-A/DM4001-80-F1/1488 Unidex 11 4-Axis Motion Controller Specs

General
Manufacturer	Aerotech
Model	U11R-4-A/DM4001-80-F1/1488
Condition	Used and in Excellent Condition
Product Family	Unidex 11, Unidex11
