M-MFN08PP MKS Instruments

Miniature Linear Stage

Write your review Stock #: 98219-3

Price	$895.00
Part Number	M-MFN08PP
In Stock	3
Available	Today
Ship Weight	10 lbs /ea
Condition	Used and in Good Condition
Warranty	1-Year Warranty with 30-Day Return Guarantee

Brands:
MKS Instruments Newport

Expedited
Shipping Available

Expert
Artisan Support

1-year
Artisan Limited Warranty

This unit's 25-pin Sub-D connector has been cut off, however, this does not affect its ability to function properly.

Installed:
• 4-Lead Cable

Configuration:
• Motor Mounted Rotary Encoder Feedback: 48 pts / Revolution
• Motor: 2-Phase Stepper Motor UE16PP
• Resolution: 0.074 μm
• Speed 0.3 mm / sec

View Photo of cut cable.

Sell your equipment

Submit Your Offer, We’re Here to Assist! If we find your offer reasonable our dedicated customer service team will get back to you.

		✗

Close ×

More Information

Features:

Compact Multi-Axis Assemblies
High Resolution
Single-Axis Translation

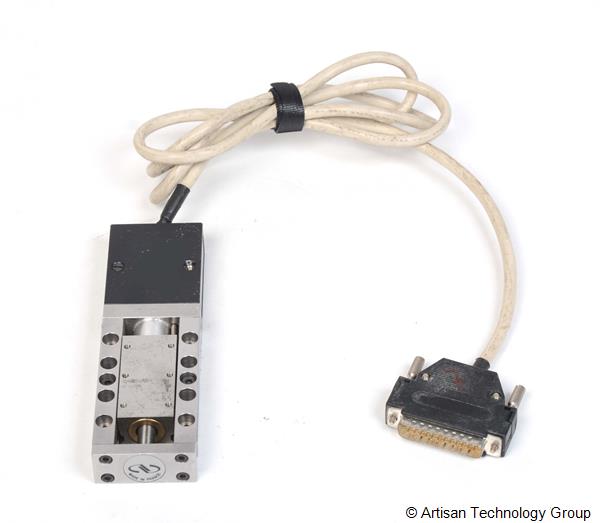

The M-MFN /MFN Series Miniature Linear Stages are Designed for space-limited applications and compact multi-axis assemblies. MFN Series linear stages supply very high resolution, single-axis translation in a low-cost, motorized package. Typical applications for this stage are fiber optic alignment, laser diode research, and inspection systems.

Components mount to the top surface of the stage via tapped mounting holes. Modular stage design facilitates easy assembly of MFN Series stages into multi-axis configurations.

A miniature DC-or stepper motor, housed within the carriage of the stage, actuates motion via a backlash-compensated lead screw and nut system. Precision-ground, double-row ball bearings ensure accurate linear travel. To meet high positioning requirements, a motor-mounted rotary encoder delivers better than 0.1 μm resolution. End-of-run limit switches prevent bearing damage from accidental over-travel.

The M-MFN08PP MKS Instruments Miniature Linear Stage may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).

no_ai_desc

MKS Instruments M-MFN08PP Miniature Linear Stage Manuals, Datasheets, Drivers, Links

MKS Instruments M-MFN08PP Miniature Linear Stage Specs

General
Manufacturer	MKS Instruments / Newport
Model	M-MFN08PP
Condition	Used and in Good Condition
Product Family	M-MFNPP, M-MFN25PP, M-MFNCC, M-MFNPP, MFNPP, M-MFNPPV6, MFNPPV6, M-MFNCC, MFNCC, M-MFN08PP
